Raptor® Integrated Analysis Platform

AccuScan® Pro from Neogen® consists of a lateral flow test reader and data management software. The system provides an easy method to objectively read, store, and analyze results from Neogen’s line of lateral flow tests. The reader contains a digital camera with a housing that interprets Neogen’s BetaStar®, Reveal®, Reveal Q+ and Reveal Q+ MAX test strips.

Features Benefits & Product Specifications

Raptor® Integrated Analysis Platform

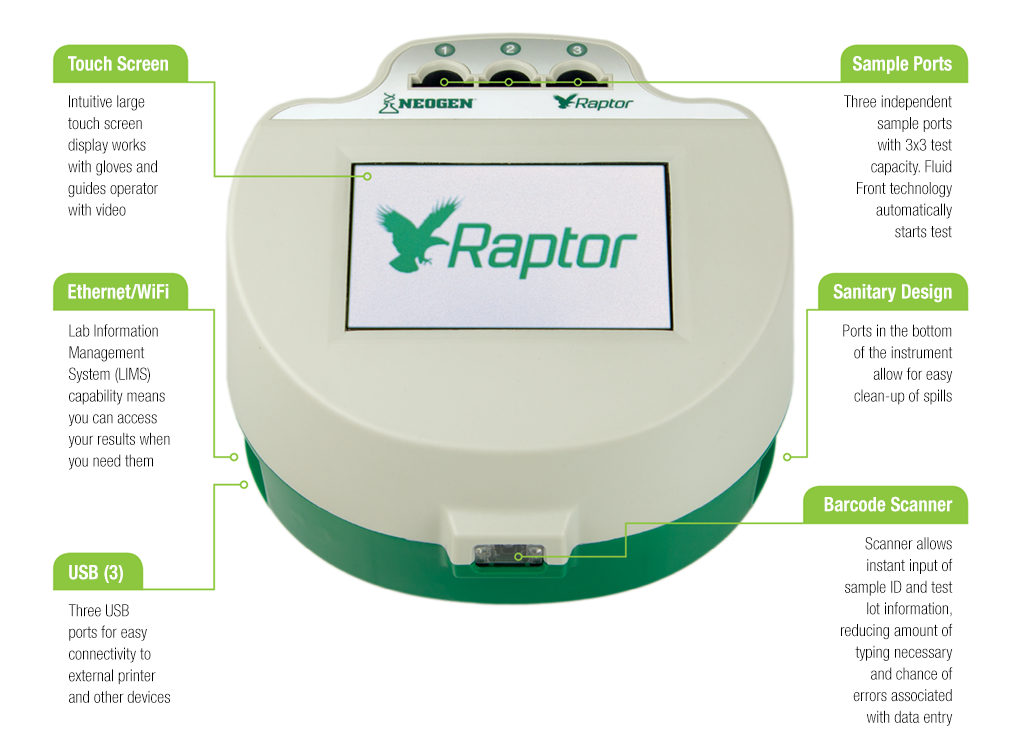

    • Scalability.
      • Running up to three samples independently and simultaneously with Raptor enables users to get the results they need faster – like having three readers and incubators in one space-saving footprint.
    • Workflow.
      • Raptor allows users to add samples, and walk away. By constantly monitoring the running conditions of the test strips, Raptor controls the timing, temperature and flow of the test strips, and records a picture of each strip’s results for documentation and user review.
    • Flexibility.
      • Raptor can provide customized testing with the platform’s unique Raptor cartridge. Users can choose the tests needed to be completed within the cartridge. Up to three devices can be run in each cartridge from a single sample.
    • Connectivity.
      • With Raptor, users can seamlessly integrate testing data into their processes, and easily set up exporting options. The platform can be configured to meet user needs with just a few simple steps.

Raptor® Integrated Analysis Platform


  • RAM/ROM:256 MB
  • Memory:4 GB user accessible
  • Display type: 4.3” TFT-LCD capacitive touchscreen
  • Display size/resolution : 4.3” TFT-LCD capacitive touchscreen
  • Keyboard/keys:On-screen
  • Navigation:On-screen
  • Housing:Textured plastic
  • Operating temperature: 41 to 104°F
  • Size (W x H x D): 18.5 cm x 10.8 cm x 16.9 cm
  • Weight:16.9 oz
  • Power:100-240V~, 50/60 Hz, 1.7A
  • Main input to power supply 100-240V~, 50/60 Hz, 1.7A
  • Input to device 12 volt DC, 40 W
  • Interface:USB 2.0, Ethernet, Wi-Fi 802.11 B/G/N
